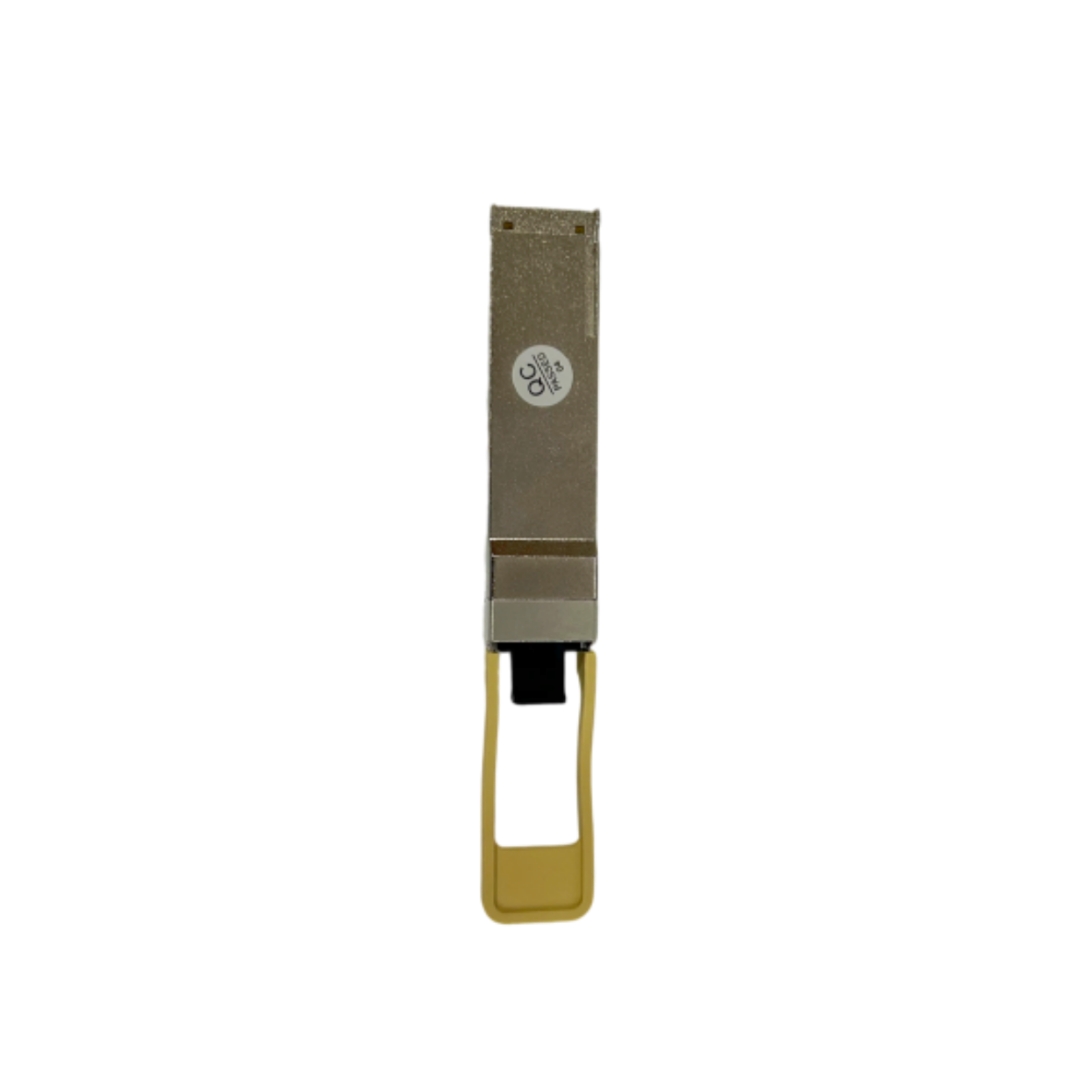

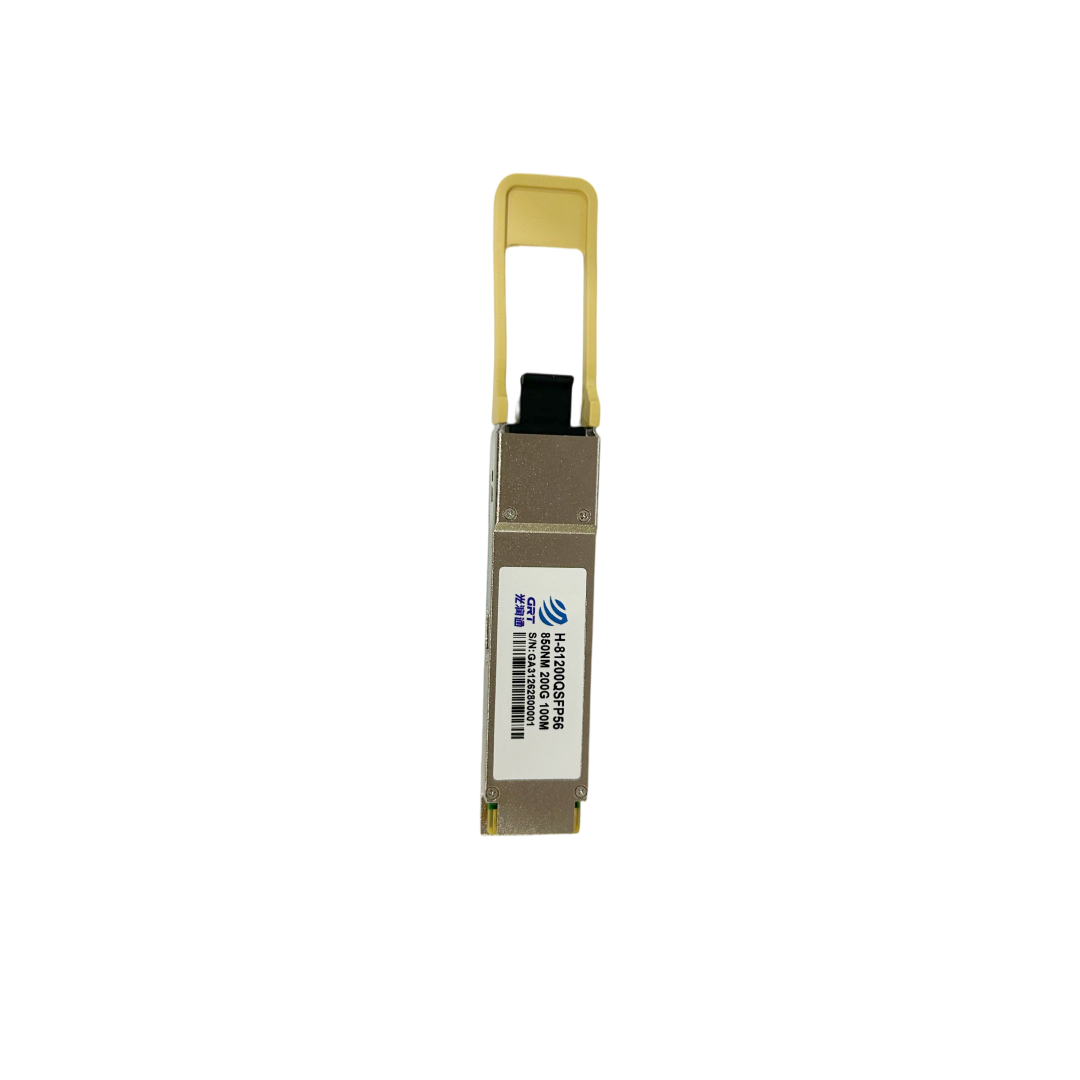

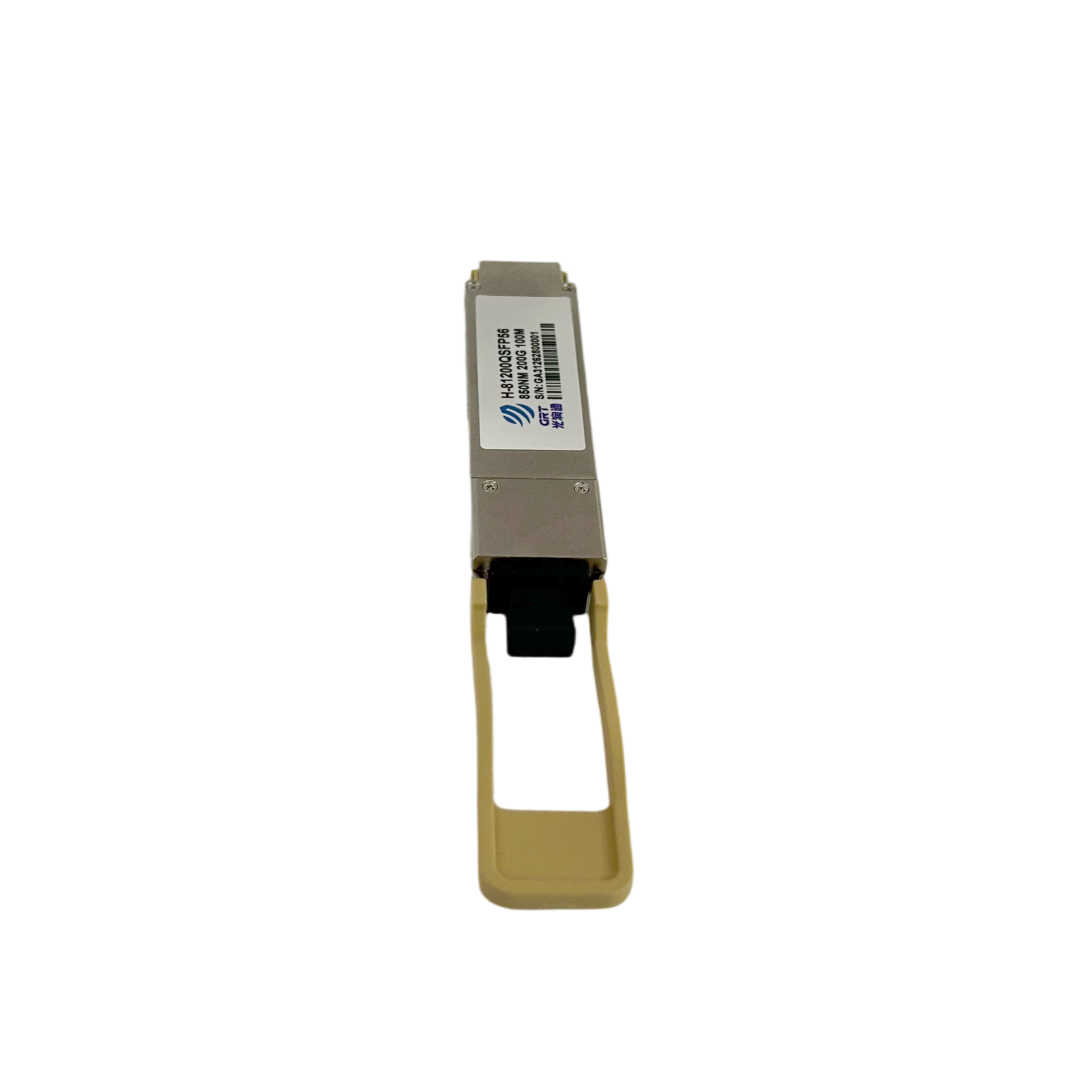

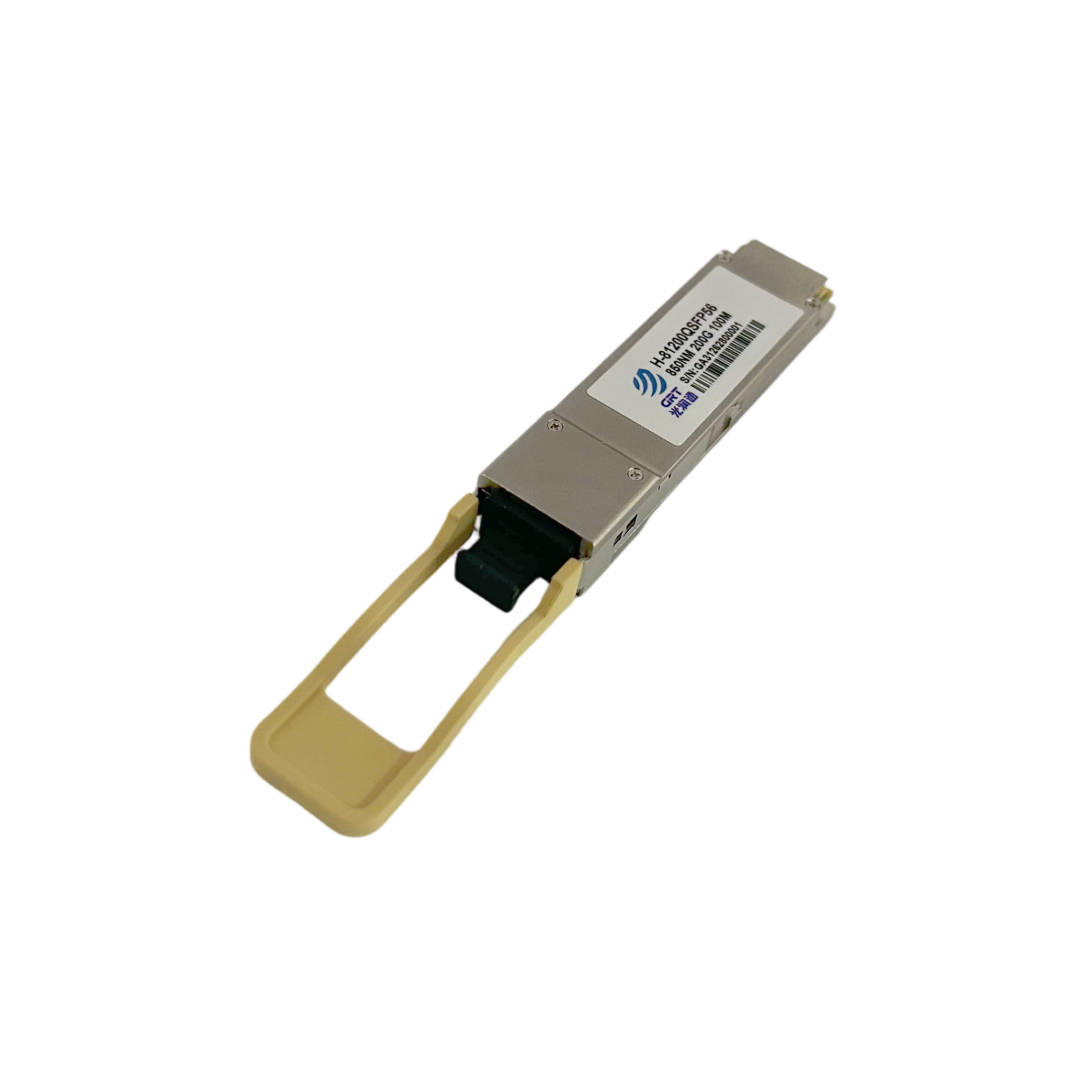

200G SR MPO 200G 850nm 100m QSFP56 Fiber Optical Transceiver
Add to Cart
My Collection
-
AI Network Adapters
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product Features
Data rates of up to 212.5 Gbps (4x PAM4 at 53 Gbps);
Reaches up to 70 m over MMF (OM3);
Reaches up to 100 m over MMF (OM4);
850 nm VCSEL laser and PIN receiver;
High-speed I/O electrical interface (200GAUI-4);
I²C interface with integrated digital diagnostic monitoring;
Single MPO-12 connector;
Single +3.3 V power supply;
Power consumption < 5 W;
Operating case temperature: 0 to +70 °C;
Compliant with RoHS-10
| Code Number | H-81200QSFP56 |
| Data Rate | 200Gbps |
|
Operating wavelength |
850nm |
| Transmission Distance | 100m |
| Commercial Case Temperature | 0-70° |
| Mode | Multimode |
| DDM diagnostic function | yes |
| Certification | CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
Application
The H-81200QSFP56 200G QSFP56 SR4 module is specifically designed for 200GBASE-SR4 Ethernet applications. The module integrates four parallel channels, each with a data rate of 26.5625 GBd. It can transmit over distances of up to 70 m on OM3 fibre or 100 m on OM4 fibre with FEC. It complies with IEEE 802.3bs, IEEE 802.3cd and the Universal Management Interface Specification Rev. 4.0.

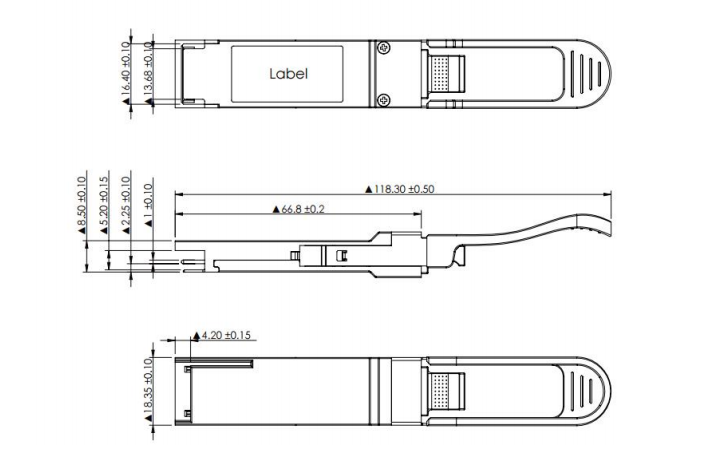

Mechanical Dimensions
Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
