400G QSFP-DD MPO Multimode Fiber Optical Transceiver 50M 850nm
Add to Cart
My Collection
-
AI Network Adapters
-
Smart Encryption Product
- 25G Mellanox chip network card
-
GRT Chip Ethernet Network Card
-
Smart Encryption Network Card
-
Ethernet Network Card
-
Ethernet Bypass Adapter
-
OCP Adapters
- FPGA Network Interface Card
-
Fiber Optic Transceivers
- Optical Fiber Patch Cord
- Fiber Media Converter
-
Unidirectional Network Card
- CWDM
- Optical Splitter
Product Features
Hot-swappable QSFP-DD transceiver
Supports 425 Gbps aggregate bit rate
Data rate of up to 53.125 Gbps per channel
MPO-16 connector socket
Single 3.3 V power supply
Low power consumption (<10 W)
Operating enclosure temperature range: 0 °C to 70 °C
RoHS compliant
Maximum link length of 70 metres on OM3 and 100 metres on OM4
| Code Number | H-81400QSFP-DD |
| Data Rate | 400Gbps |
|
Operating wavelength |
850nm |
| Transmission Distance | 50m |
| Commercial Case Temperature | 0-70° |
| Mode | Multimode |
| DDM diagnostic function | yes |
| Certification | CE, FCC, RoHS |
| Application | Switches, Routers, VPN, Firewall |
| Warranty Time | 3 years |
Application
The H-81400QSFP-DD is a hot-swappable QSFP-DD transceiver designed for 400G links over multimode fibre. It is a high-performance module for short-distance data communication and interconnect applications, operating at a speed of 425 Gbps over a distance of 70 metres when using OM3 multimode fibre, and over a distance of 100 metres when using OM4 multimode fibre.

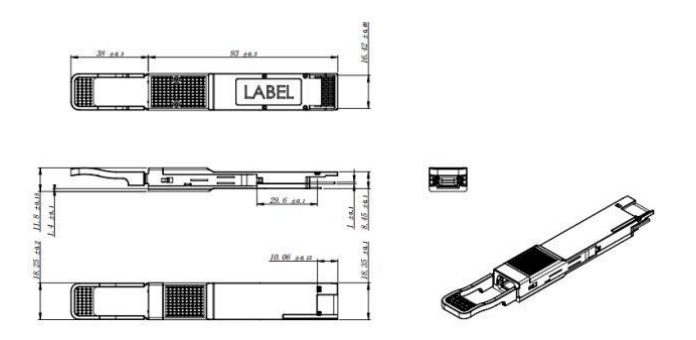

Mechanical Dimensions
Compatibility
All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, , Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.
Packaging & Shipping
Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
